About Onyx

Onyx is a Sprinter 170. The build came together well enough that we've turned the layout into one of our spec options.

The client is an ultramarathon runner. The week before she picked the van up she finished the Cocodona 250, which tells you most of what this build had to be. Tough enough to keep up with the kind of trips she puts her body through. Comfortable enough to feel like home when the running was done.

The wet bath is 32 inches wide with an infinity shower. Heated floors run on a hydronic loop that ties into hot water and cabin heat, so one system warms the bed at the end of a long day and the shower at the start of the next one.

All the water lives inside the van. Fresh tank, grey tank, every plumbing run, all of it enclosed and protected. Nothing exposed underneath that could freeze and crack. The grey is insulated and heated alongside the fresh, which means she can run four-season without winterizing the system every time the forecast drops.

Power was built for long stretches off-grid. 800 Ah of Victron lithium. 400 W of solar on the roof. A 280-amp secondary alternator refills the bank fast while she's driving. A Victron 3000 W inverter handles the AC side, and the Cerbo GX touchscreen runs the whole stack from one panel.

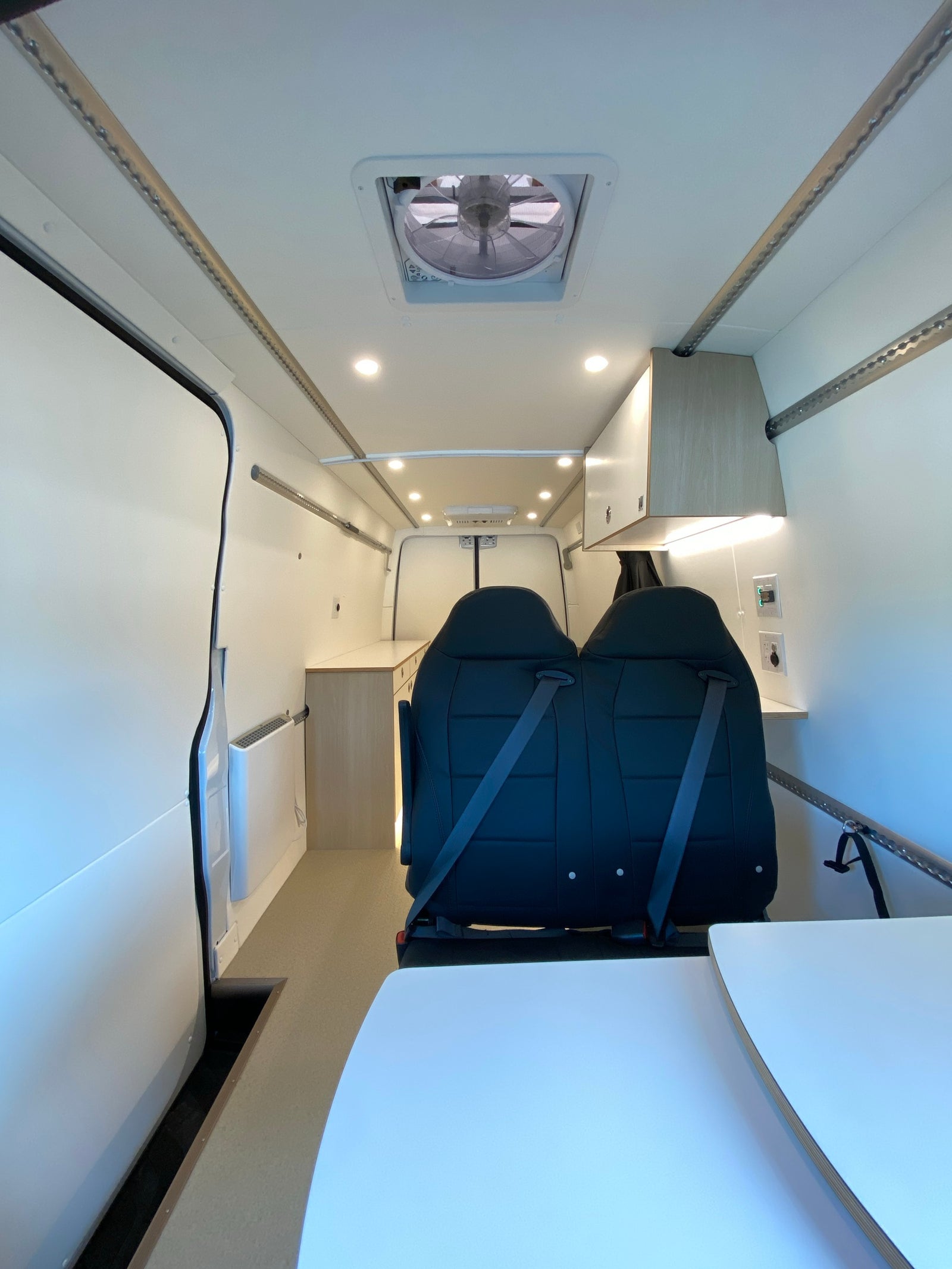

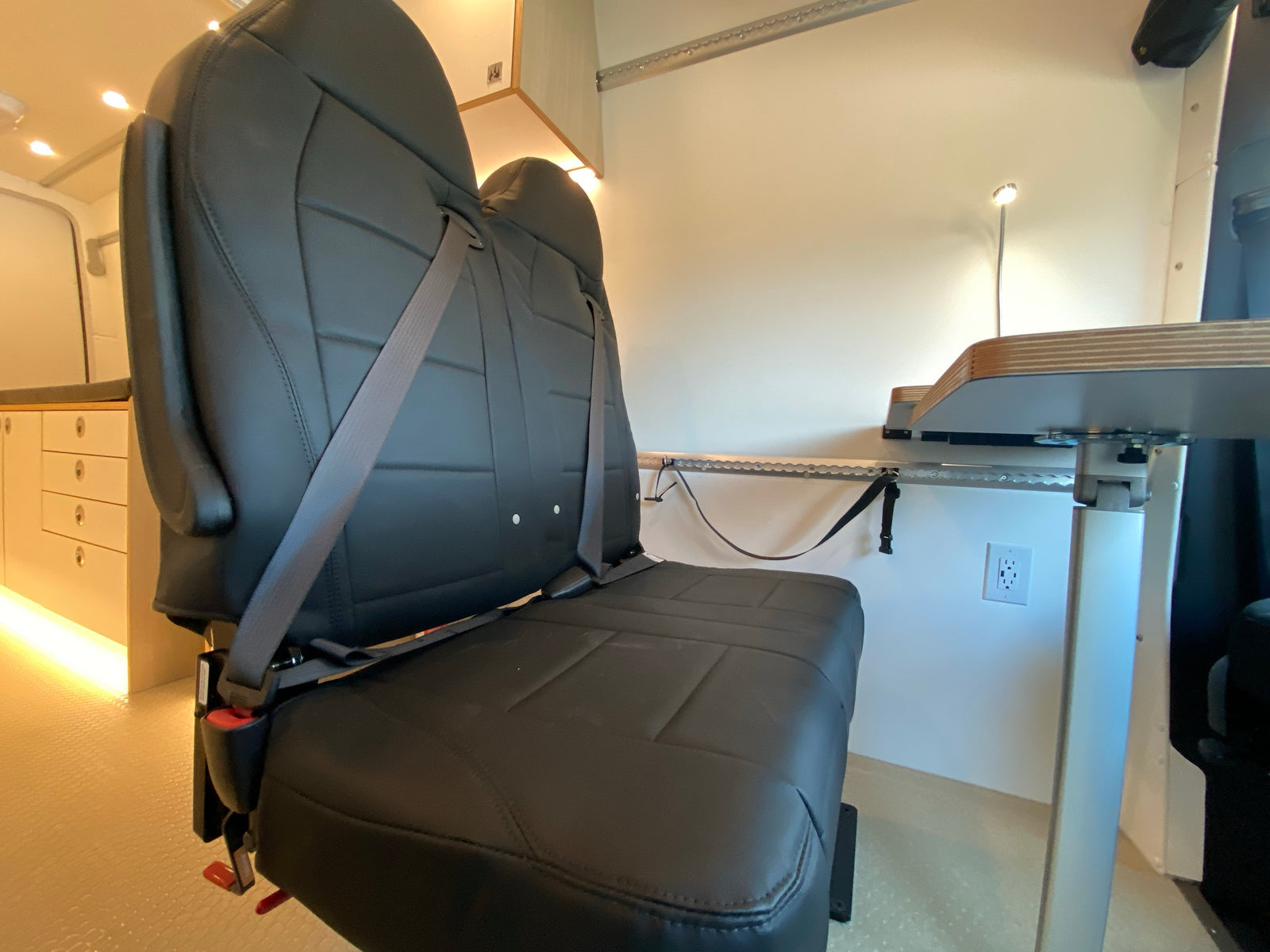

Two Van Equipped jump seats sit on a SafeTrack rail. In for passengers and a packed weekend. Out for gear, race-day supplies, and the floor space to load it all.

The pull-up bar on the roof rack came in custom because she still needed somewhere to train between races. Even when the trails were a long walk away, she could get her workout from the side of the van.

The bones underneath are built for the weight. Van Compass Opti-Rate leaf springs hold the rear at the right height under a heavy load. A Van Compass Stage 1 shock kit smooths what the springs cannot. Rolling on Owl Talon 17-inch wheels with upgraded Nitto Terra Grapplers for the trails she will actually drive.

The exterior is built for hard miles. An Owl Vans Ridgeline bumper protects the front, with matching skid plates covering the underside. At the back, an Explorer tire carrier and ladder handle the spare and the climb. The Monster 40 box swallows whatever gear does not fit anywhere else. A Van Compass rear tug step underneath. A Curious Campervans roof rack overhead, carrying the custom pull-up bar.

She is almost as tough as her owner. She'll be there for every step of every race.

Onyx Highlights

• 32-inch custom wet bath with infinity shower
• Hydronic heated floors
• Insulated and heated grey tank for true four-season use
• 800 Ah Victron lithium with 400 W solar and a 280-amp secondary alternator
• Vitrifrigo 150L full-height fridge / freezer
• Two removable Van Equipped jump seats
• Custom-fabricated pull-up bar on a Curious Campervans rack

Full Spec

• Custom backing package for L-Track anchor points
• Basecamp prep package (CAD modelling, chassis inspections, factory harness rework)
• Insulation and noise dampening package (3M, mould-resistant ceiling and wall
insulation)
• Sileather panel and L-track package
• Driver-front T-vent window with insulated cover
• Passenger sliding door T-vent window with insulated cover
• Sprinter terrawagen trim package
• Hydronic heated floor system
• Flarespace package and CRL bunk windows
• Safety package (smoke / CO detector, mounted fire extinguisher)

• Two Van Equipped single comfort swivel seats (removable, SafeTrack mounted)
• Two single-seat mounting plates
• Sleep-sideways platform bed with natural-fibre mattress (Alberta wool, organic cotton-hemp cover)
• Cabbunk front cab bunk bed

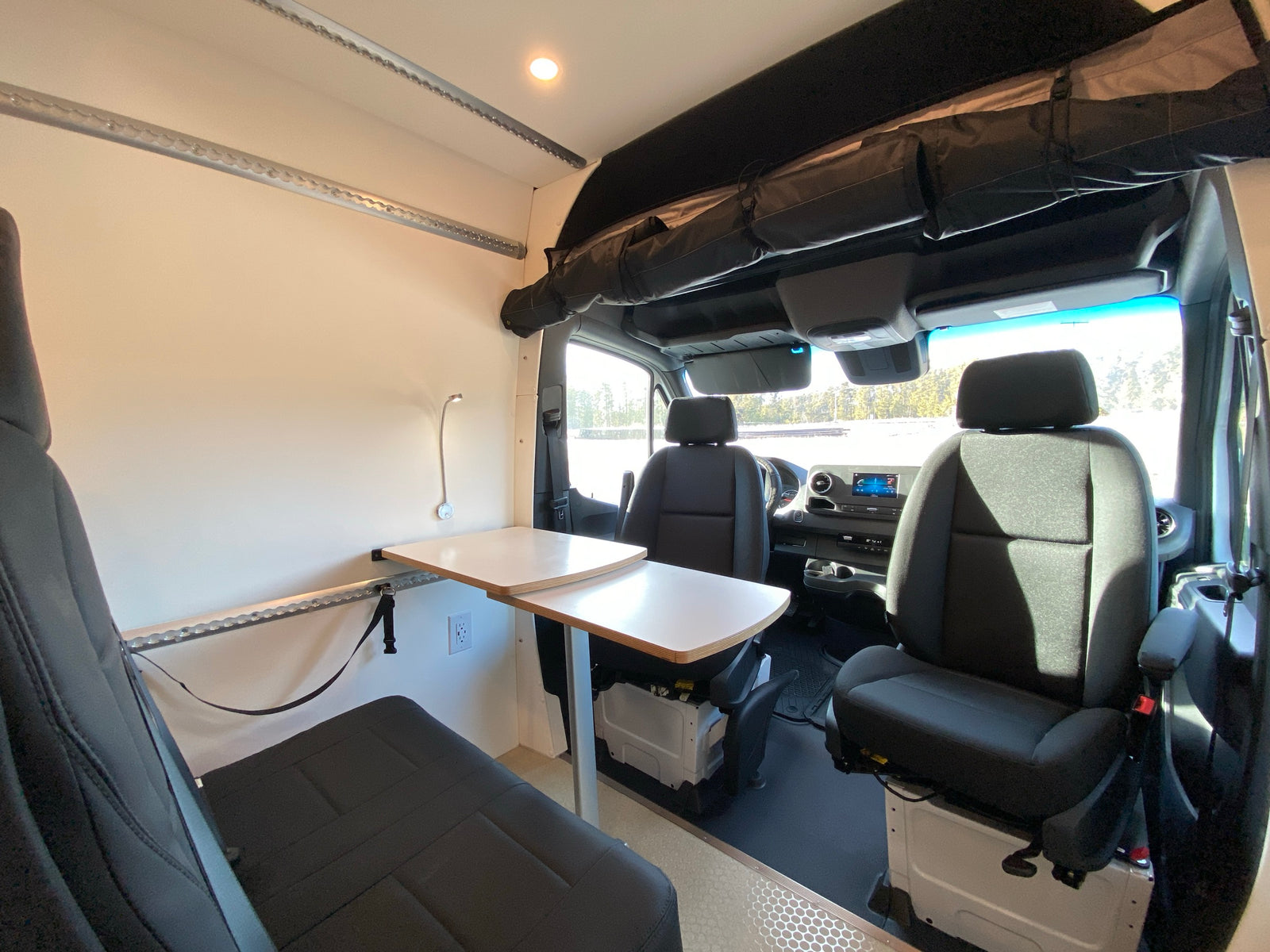

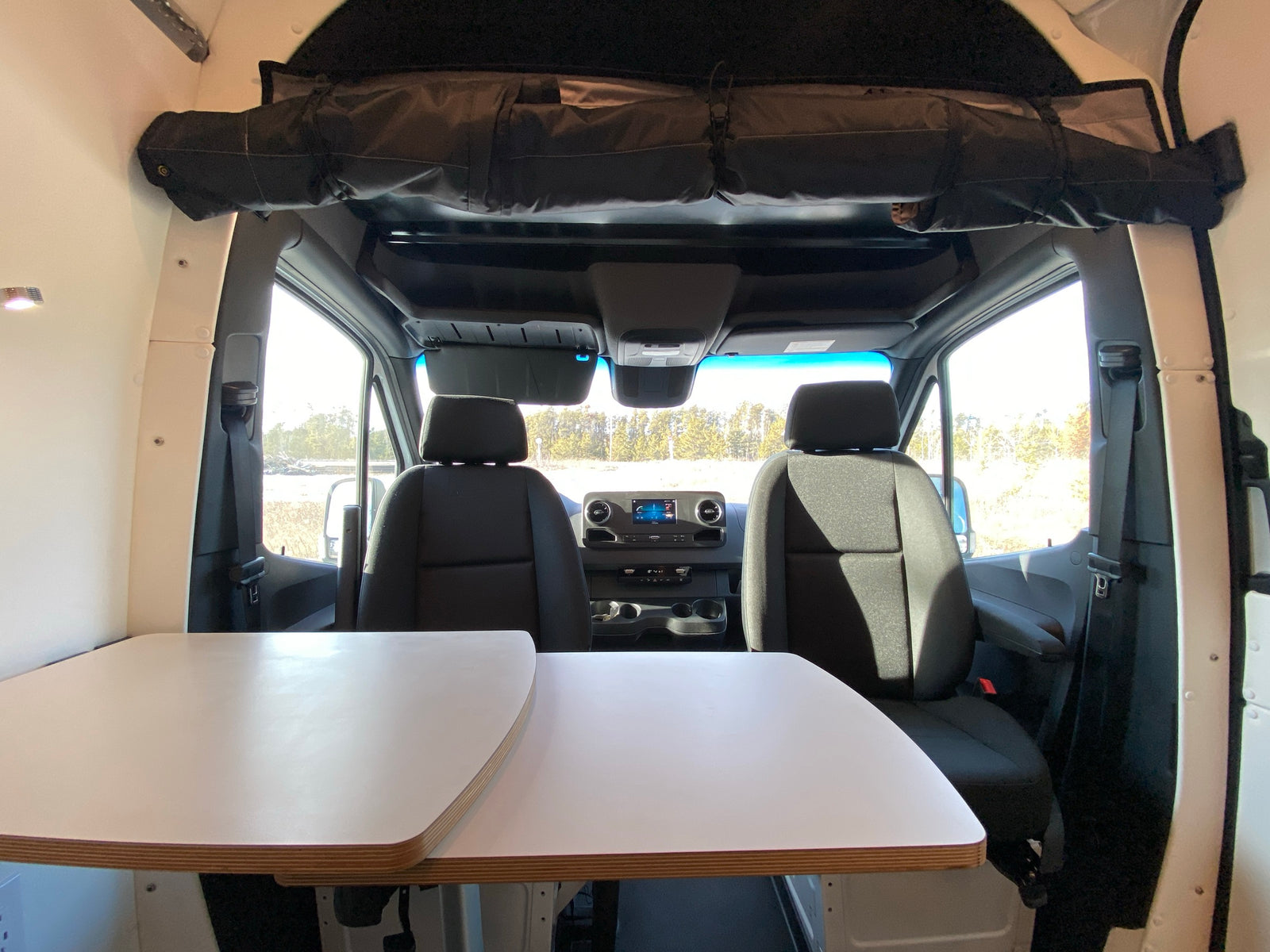

• Rotating dinette table (20" x 30" main, 20" x 20" nested swing-out)
• Interior galley flip-up table
• Exterior flip-down table with 20A GFCI pop-up outlet

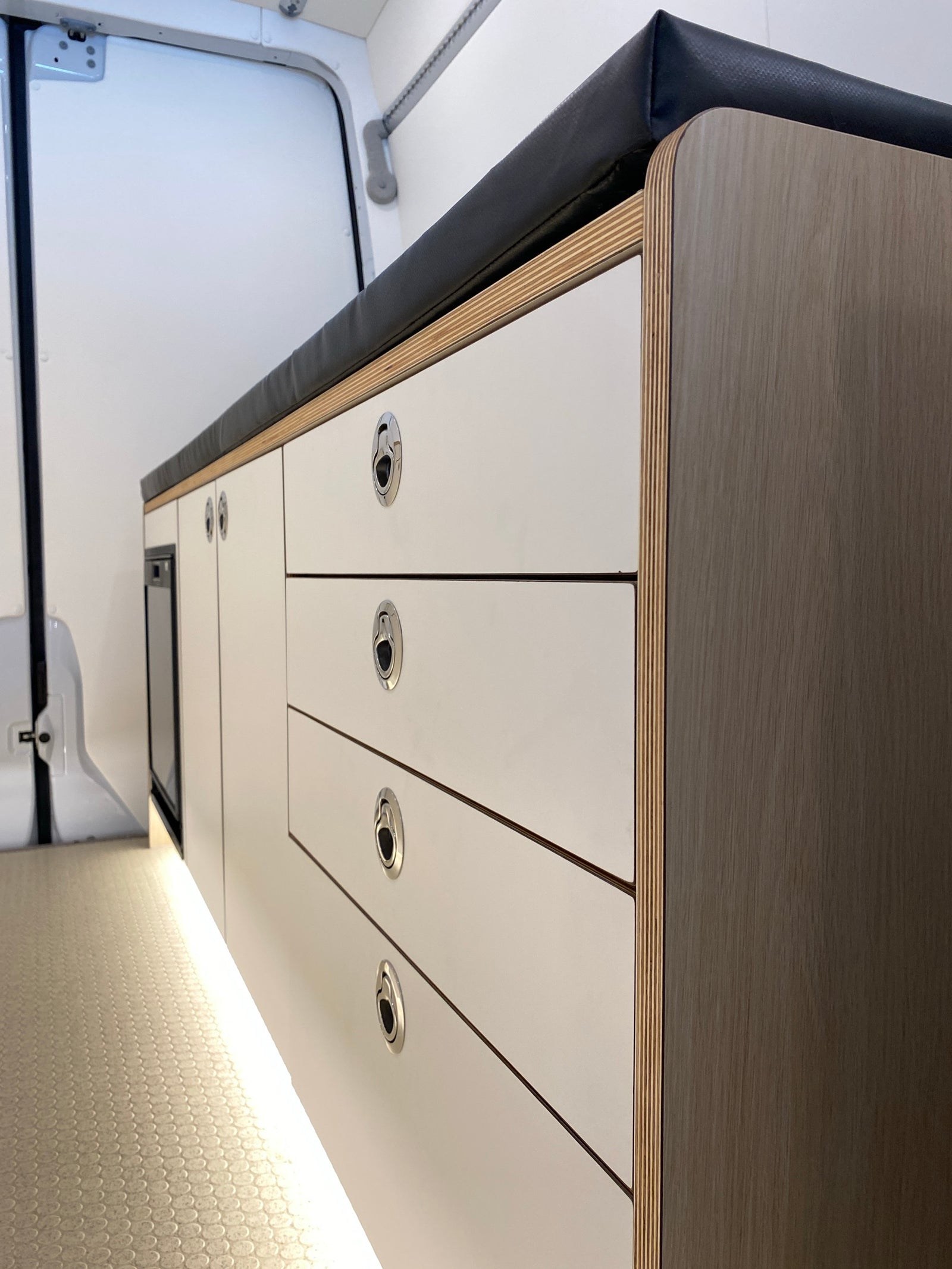

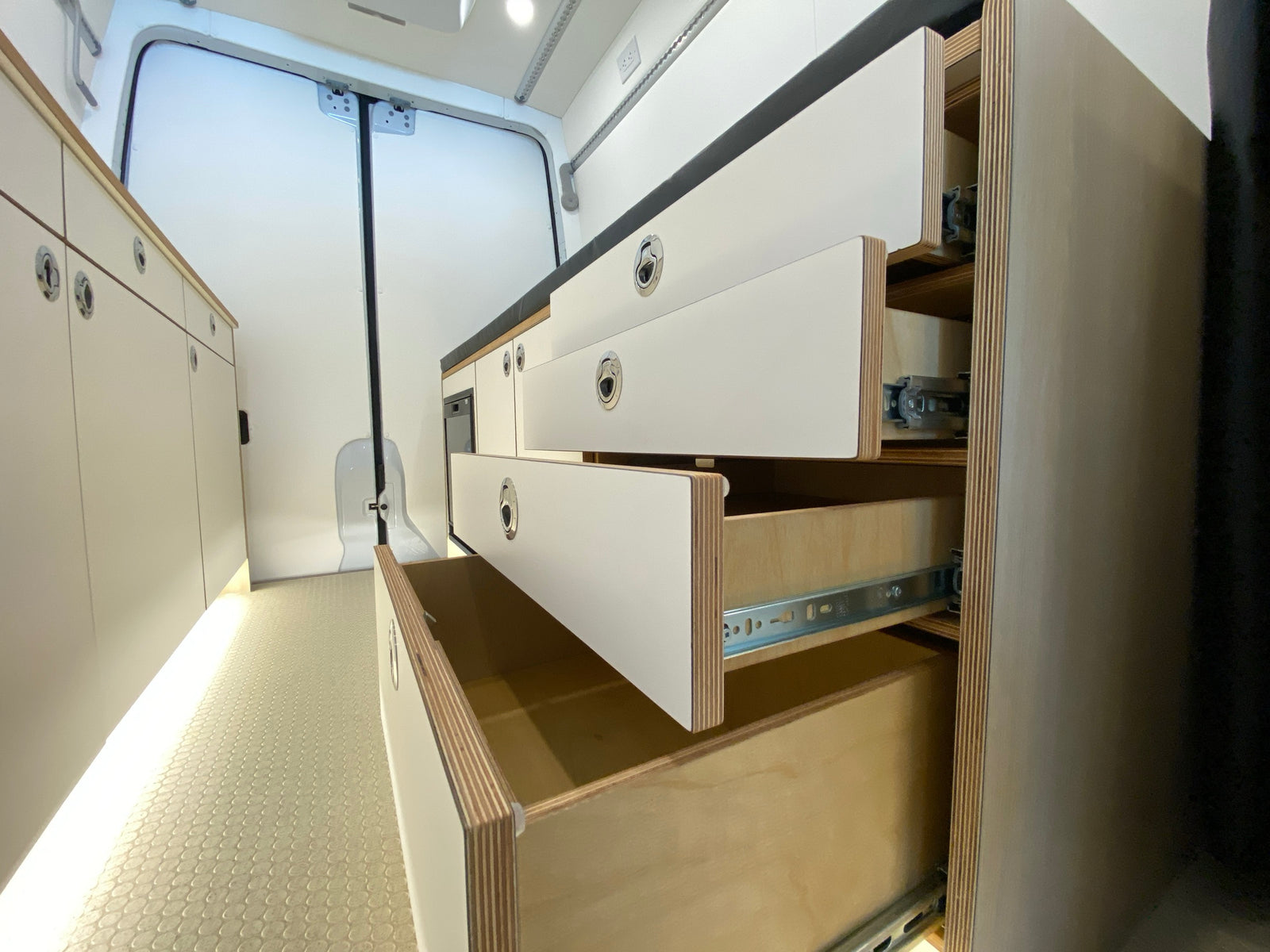

• Laminated Baltic Bitch plywood cabinetry
• 2-burner induction cooktop
• Single-burner induction (secondary)
• Solid surface countertops
• Microwave upgrade
• Vitrifrigo 150L full-height fridge / freezer
• Sprinter over-cab storage with integrated LED

• Hydronic fresh water system with cabin heat (35 gal tank, instant hot, Espar)
• Heated, insulated 46L grey tank

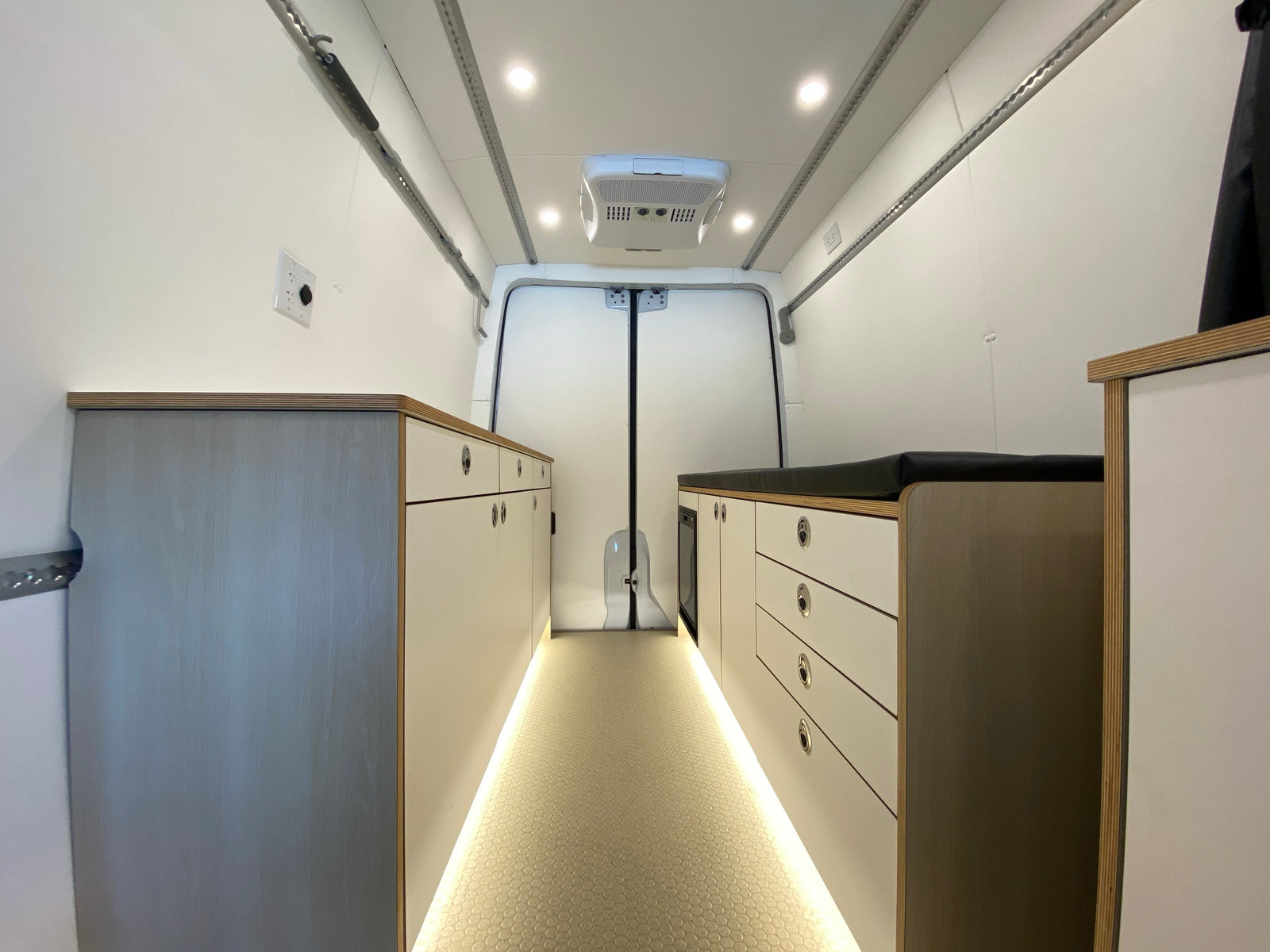

• Dometic 12V RTX 2000 rooftop A/C
• Deluxe MaxxFan 7500 with insulated cover
• Sirocco II 12V 360° gimbal cabin fan
• Guzzle H2O Stealth Flex 5 water filter (UV-C plus carbon)
• Portable dry-flush toilet
• Custom wetbath with Nautilus door

• Level 3 Victron system: MultiPlus 3000W inverter / charger, Cerbo GX touchscreen,
BMS, breaker panels, exterior SmartPlug with 30-amp shore cord
• 800 Ah Victron lithium battery bank (heated)
• 400W solar
• Sprinter 280A secondary alternator with Wakespeed regulator
• Low-voltage autostart
• 12V ceiling puck lights (3000K)
• Task / ambient under-cabinet and toekick lighting with dimmer
• Two reading lights with USB
• USB outlets and interior wall outlets

• Van Compass Opti-Rate replacement leaf springs
• Van Compass Stage 1 (Falcon 2.1 monotube shocks, BAJA brackets)
• Owl Talon 17" wheels with Nitto Terra Grappler G3 275/70R17 tires
• Roambuilt Low Pro side steps
• Owl Vans Ridgeline Max bumper (Warn EVo 12-S winch ready)
• Owl Vans Ridgeline skid plates
• Owl Vans Explorer spare tire relocation and ladder
• Owl Vans Monster 40 Box XL (8.8 cu ft cargo)
• Owl Vans B2 Bike and Box carrier with gear basket
• VC rear tug step with D-rings
• Curious Campervans Sprinter 170 roof rack
• Owl Vans grille lights (Triple-R 750)
• Rigid 40" light bar
• Rigid Scene lighting (PS, DS, rear)
• Rigid D-Series A-pillar light kit
• Owl Vans hood struts
• Owl Vans super bass horn
• Owl gear cage box top
• SwitchPros SP9100 8-switch panel
• Starlink Mini roof-mount prep
• Custom fabricated pull-up bar on roof rack
